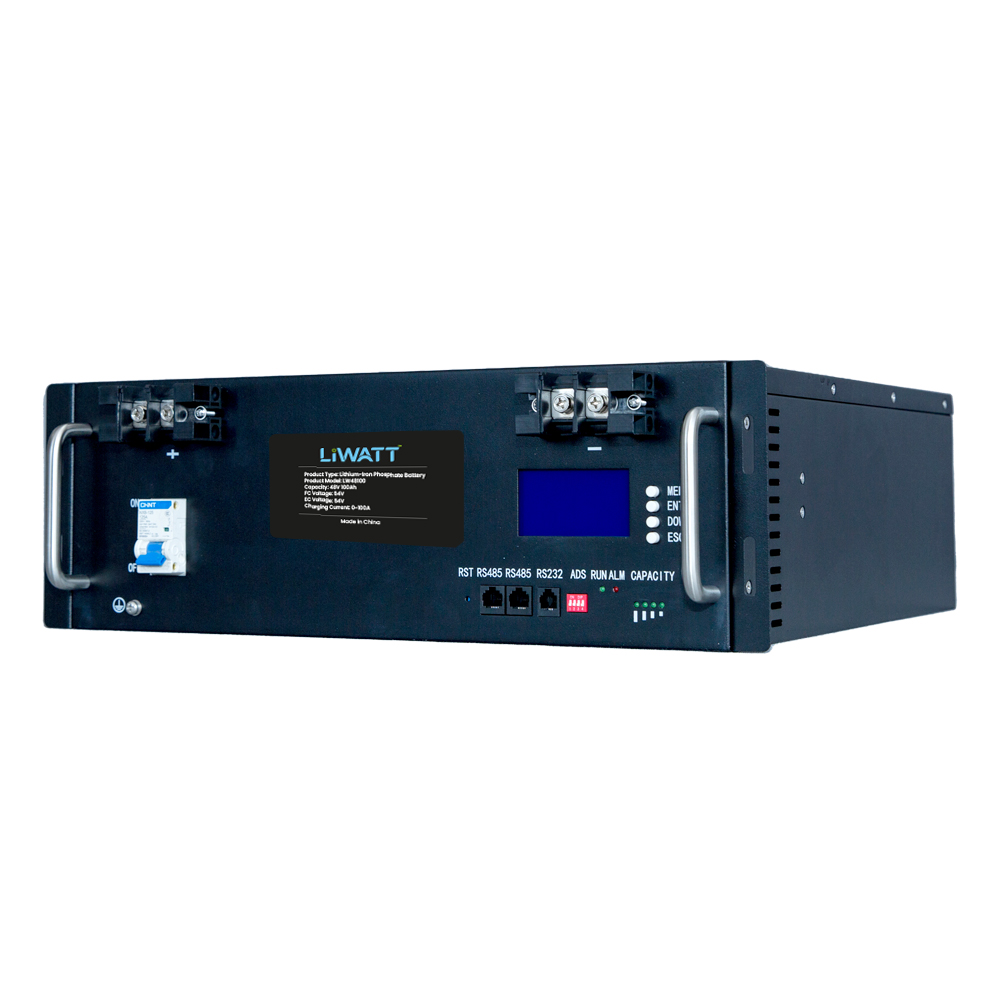

Liwatt Lithium ion LiFePo4 48V 100AH IPS UPS Battery

Introduction

 LW48100 (Li-WATT 48V-100Ah & 48V-200Ah) is a communication lithium battery based on innovative Li-ion technology. It is specially designed for telecom sites with advanced features: a long lifespan, a wide range of charging voltage, fast charging, and intelligent management.
Application

•

  Telecom Industry
• Solar Inverter
• Industrial Storage

48V-100-Ah

Feature of LiFePO4 Battery

•
  Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership
• Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity
• High depth of DOD: Charge & discharge at 100% DOD with high performance
• No Memory Effect: Support unstable partial state of charge (UPSOC) (charge/discharge) utilization
• Built-in safety mechanism to protect assets against any abnormal conditions (Grounding damage, surge, deep drain etc.)

Functions of Battery

•
  OVP, UVP, OTP, OCP, SCP
• Self-management on charging and discharging, single cell balancing function
• Supports communication with equipment over RS485
• Intelligent design, supports battery upgrade over RS232
• LCD displays battery information

Technical Specification of Battery

Specification Model LW 48100Electrical Characteristics Nominal Voltage48VNominal Capacity100AhEnergy4800WhInternal Resistance≤20mΩ（ without BMS Cycle Life≥4000 cycles @80%DODDesign Life≥15 years @25℃Self-Discharge (30 days)≤3% @35℃Efficiency of Charge≥98%Efficiency of Discharge≥100% @ 0.2C, ≥96% @ 1CChargeCharge Voltage52.5-54.0VCharge Mode0.2C to 54V, then 54V charge current to 0.02C (CC/CV)Max. Charge Current1CDischargeMax. Continuous Discharge Current1CDischarge Cut-off Voltage42.5V±0.5VEnvironmentalCharge Temperature Range-20℃~60℃ (extra heating mechanism under 0oC)Discharge Temperature Range-20℃~60℃ (reduced capacity under 0oC)Optimum Operation Temperature10℃~35℃Storage Temperature-20℃~55℃，≤85% Relative Humidity Water Dust ResistanceIP20MechanicalMax. Weight≥41kgDimensions W*D*H (excluding hanger and handle bar)442*450*156mmCaseIron (Insulation painting)Min. Gravimetric Specific energy112Wh/kgTerminalM6*2 for positive and M6*2 for negative Parallel in maximum16pcs in maximum, vertical or horizontal install are both allowed Communication Parallel Communication RS485 Battery with EquipmentRS485Battery Debugging CommunicationRS232SOC Light4 * LED Charge Current limit When the charging current exceeds the set value,turn on the current limit and limit the current to 10AOptional Functions LCD Screen| Yes: Displays the total voltage pack, cell voltage, temperature, BMS status, etc. | No Gyroscope anti-theft| Yes Keep battery tilt more than 15° to turn on anti-theft | No Buzzer| Yes | No Dry Contact| Yes PIN1 to PIN2: Normally closed, open during low power PIN3 to PIN4: Normally closed,open during fault protection |
