Liwatt Lithium ion LiFePo4 51.2V 100AH IPS UPS Battery

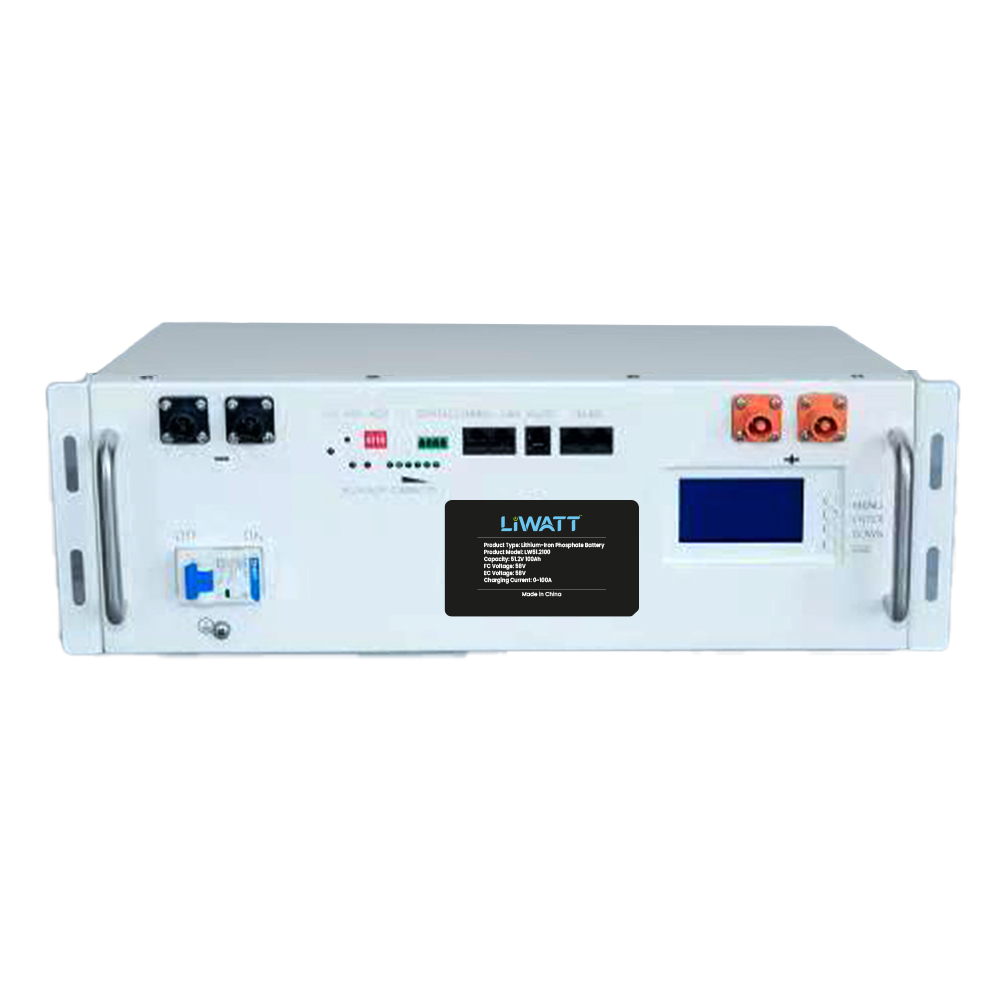

LiWATT 51.2V 100Ah Home-ESS Battery Introduction

LW51100 (LiWATT 51.2V 100Ah)is a communication lithium battery based on innovative Li-ion technology. It is specially designed for telecom sites with advanced features: a long lifespan, a wide range of charging voltage, fast charging, and intelligent management.
Application

• Home Energy Storage
• Solar Inverter
• Industrial Storage

LW 51.2100

Feature of LiFePO4 Battery

• Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership
• Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity
• High depth of DOD: Charge & discharge at 100% DOD with high performance
• No Memory Effect: Support unstable partial state of charge (UPSOC) (charge/discharge) utilization
• Built-in safety mechanism to protect assets against any abnormal conditions (Grounding damage, surge, deep drain etc.)

Functions of Battery

• OVP, UVP, OTP, OCP, SCP
• Self-management on charging and discharging, single cell balancing function
• Supports communication with equipment over RS485
• Intelligent design, supports battery upgrade over RS232
• LCD displays battery information

Technical Specification of Battery

Specification Model LW 51.2100Electrical Characteristics Nominal Voltage51.2V Nominal Capacity100Ah Energy5120WhInternal Resistance≤100mΩ (without BMS)Cycle Life≥4000 cycles, 80% DOD Design Life≥15 years @25℃Self-Discharge (30 days)≤3% @35℃Efficiency of Charge≥98%Efficiency of Discharge≥100% @ 0.2C , ≥96% @ 1CChargeCharge Voltage56-57.6VCharge Mode0.2C to 57.6V, then 57.6V charge current to 0.02C (CC/CV)Max. Charge Current100ADischargeMax. Continuous Discharge Current100ADischarge Cut-off Voltage5V±0.5VEnvironmentalCharge Temperature Range-20℃~60℃ (extra heating mechanism under 0oC)Discharge Temperature Range-20℃~60℃ (reduced capacity under 0oC)Optimum Operation Temperature10℃~35℃Storage Temperature-20℃~55℃，≤85% Relative Humidity Water Dust ResistanceIP20MechanicalMax. Weight≥43kgDimensions（W*D*H）(excluding hanger and handle bar)442*450*156mmCaseIron (Insulation painting)Min. Gravimetric Specific energy119Wh/kgTerminalM6*2 for positive and M6*2 for negative Parallel in maximum16pcs in maximum, vertical or horizontal install are both allowed Communication Parallel CommunicationRS485Battery with EquipmentRS485Battery Debugging CommunicationRS232SOC Light6 * LED Charge Current limit When the charging current exceeds the set value,turn on the current limit and limit the current to 10A
