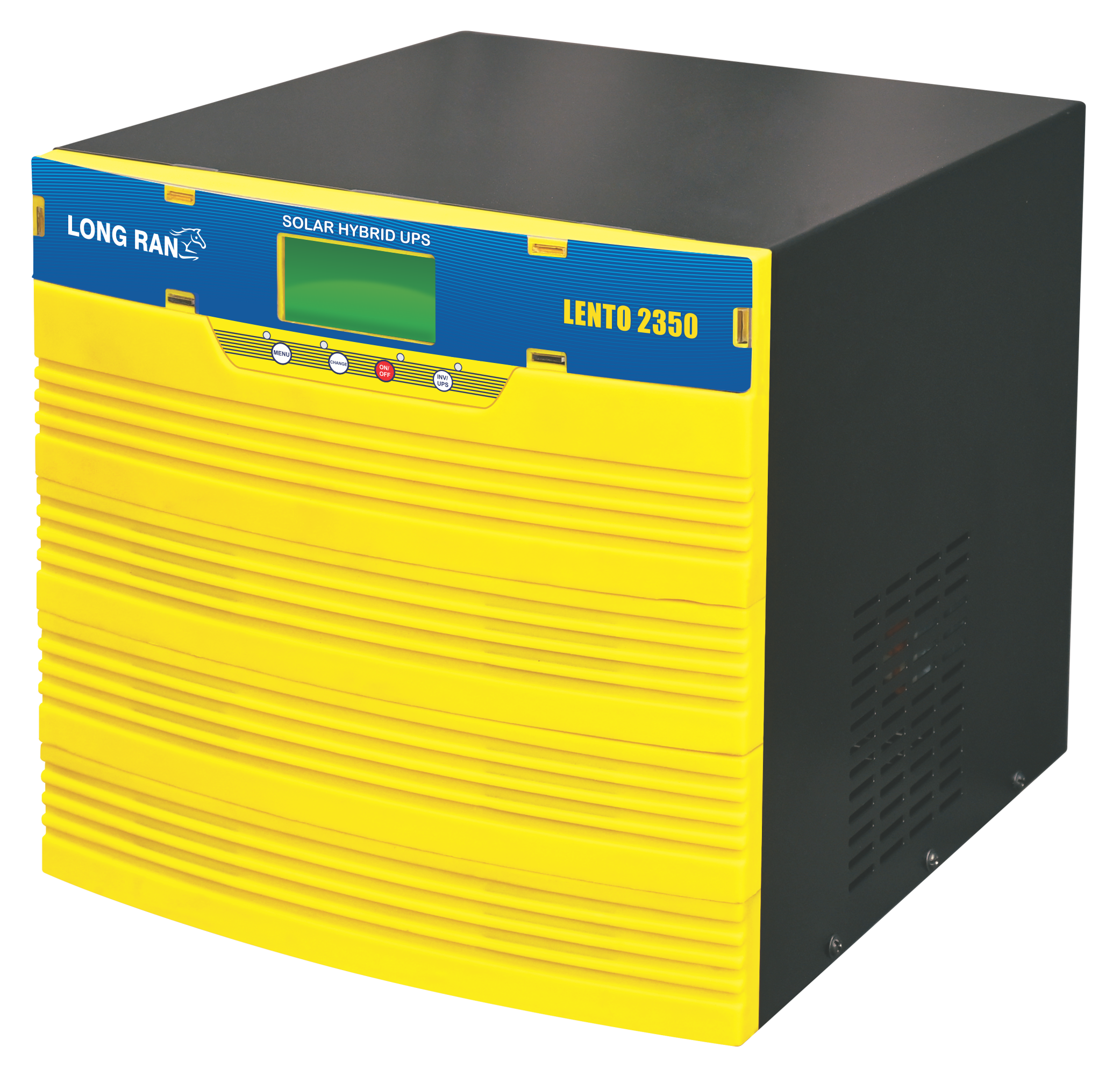

Long Ran PCU 2350 24V 1680W Solar Hybrid IPS UPS Inverter

Full Specification

1. Model: Long Ran Hybrid UPS 2350
2. Capacity: 2100VA
3. Output Load Capacity: 1680 Watt (24V)
4. Lithium-ion Battery Supported (LiFepo4)
5. Wave Form: DSP Pure Sign Wave and microcontroller based
6. Input Voltage:100V AC – 295V AC
7. Output Voltage: 220+
8. Frequency: 50/60 Hz, Single Face
9. User selectable grid-charging enable or disable option
10. In-built heavy duty (PWM) solar charge controller 50AH
11. Maximum Solar Use: 2000Watt
12. Solar Panel Voltage: 24V
13. Maximum Solar Voc-51V
14. In-built heavy PWM Charge Controller 30AH
15. Solar panel connection is parallel
16. Solar and grid charging current sharing for maximum solar usage
17. User satiable priority solar-battery-grid or solar-grid-battery
18. Protection
19. Overloading Protection- Yes
20. Overcharging Protection- Yes
21. Short Circuit Protection-Yes
22. lithium-ion (LiFePo4) Battery supported: Yes
23. Sinewave- 100% Pure Sine Wave
24. Power saving with no load shut down
25. Generator compatible
26. Battery deep discharge & over charge protection

Description

Long Ran PCU-2350 Solar Hybrid Pure Sine Wave IPS / UPS, is an electric inverter with a capacity of 2100VA and a rated power of 1680 watts 24V. It provides DSP pure sine wave technology and has overloading, overcharging, and short-circuit protection, Bypass switch, And Full Charge Cut Protection, Low voltage cut Protection, Lithium ion (LiFePo4) Battery Supported, this inverter has a silver Transformer and an LCD & LED -Dual Big Display. In-built heavy duty (PWM) solar charge controller, Max Solar Capacity-2000Watt, Solar Panel Voltage 24v, Max Solar VOC-51v, In-built heavy PWM Charge Controller 50AH, it has an input voltage range of 90-220 volts AC.
